PCIe SUBD connector and breakout cable
From SOUND4wiki

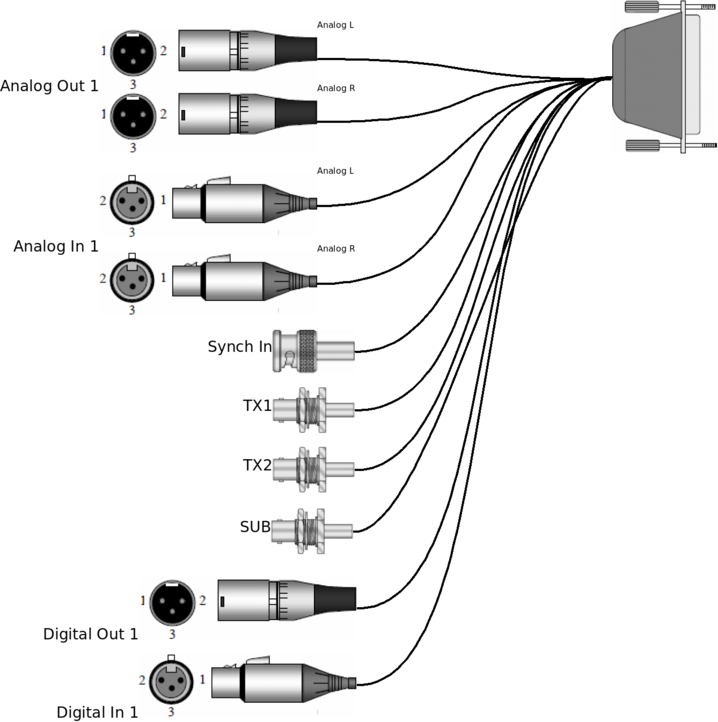

HD-FM Connector Pinout
| SUBD HDM62H | Function | Destination | |
| PIN | Connector | PIN | |
| 1 | Analog R OUT (-) | XLR Male | 3 |
| 2 | Analog L OUT (-) | XLR Male | 3 |
| 3-6 | Not Connected ! | ||
| 7 | Analog R IN (-) | XLR Female | 3 |
| 8 | Analog L IN (-) | XLR Female | 3 |
| 9-12 | Not Connected ! | ||
| 13 | TX2 Multiplex (coax) | BNC Female | core |
| 14 | SUB input (coax) | BNC Female | core |
| 15 | Digital IN (-) | XLR Female | 3 |
| 16-17 | Not Connected ! | ||
| 18 | Digital OUT (-) | XLR Male | 3 |
| 19-20 | Not Connected ! | ||
| 21 | Synch IN | BNC Male | core |
| 22-42 | GND common | All XLR | 1 |
| All BNC | shield | ||
| 43 | Analog R OUT (+) | XLR Male | 2 |
| 44 | Analog L OUT (+) | XLR Male | 2 |
| 45-48 | Not Connected ! | ||
| 49 | Analog R IN (+) | XLR Female | 2 |
| 50 | Analog L IN (+) | XLR Female | 2 |
| 51-54 | Not Connected ! | ||
| 55 | TX1 Multiplex (coax) | BNC Female | core |
| 56 | Not Connected ! | ||
| 57 | Digital IN (+) | XLR Female | 2 |
| 58-59 | Not Connected ! | ||
| 60 | Digital OUT (+) | XLR Male | 2 |
| 61-62 | Not Connected ! | ||

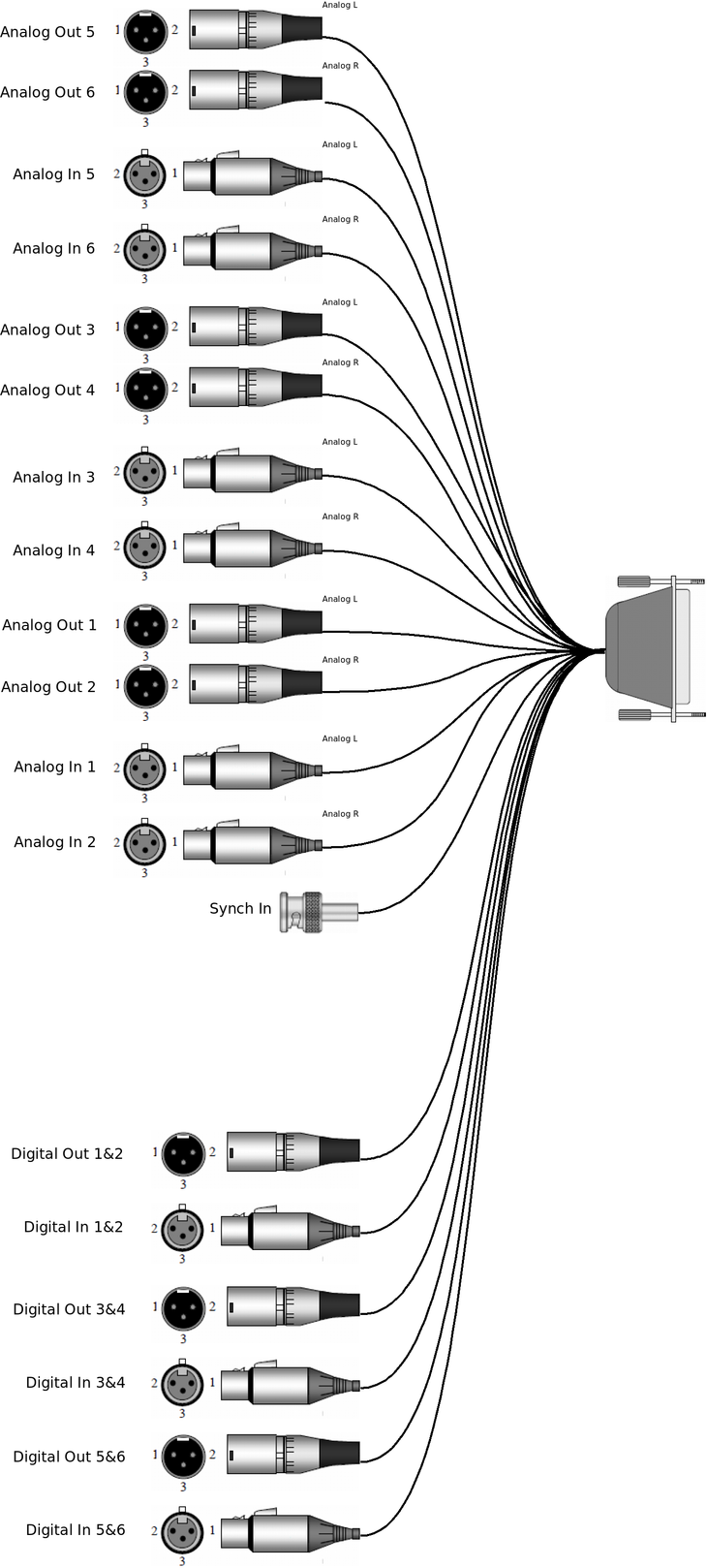

Voice AD Connector Pinout
| SUBD HDM62H | Function | Destination | |
| PIN | Connector | PIN | |
| 1 | Analog 1 OUT (-) | XLR Male | 3 |
| 2 | Analog 2 OUT (-) | XLR Male | 3 |
| 3 | Analog 3 OUT (-) | XLR Male | 3 |
| 4 | Analog 4 OUT (-) | XLR Male | 3 |
| 5 | Analog 5 OUT (-) | XLR Male | 3 |
| 6 | Analog 6 OUT (-) | XLR Male | 3 |
| 7 | Analog 1 IN (-) | XLR Female | 3 |
| 8 | Analog 2 IN (-) | XLR Female | 3 |
| 9 | Analog 3 IN (-) | XLR Female | 3 |
| 10 | Analog 4 IN (-) | XLR Female | 3 |
| 11 | Analog 5 IN (-) | XLR Female | 3 |
| 12 | Analog 6 IN (-) | XLR Female | 3 |
| 13-14 | Not Connected ! | ||
| 15 | Digital IN 1/2 (-) | XLR Female | 3 |
| 16 | Digital IN 3/4 (-) | XLR Female | 3 |
| 17 | Digital IN 5/6 (-) | XLR Female | 3 |
| 18 | Digital OUT 1/2 (-) | XLR Male | 3 |
| 19 | Digital OUT 3/4 (-) | XLR Male | 3 |
| 20 | Digital OUT 5/6 (-) | XLR Male | 3 |
| 21 | Synch IN | BNC Male | core |
| 22-42 | GND common | All XLR | 1 |
| All BNC | shield | ||
| 43 | Analog 1 OUT (+) | XLR Male | 2 |
| 44 | Analog 2 OUT (+) | XLR Male | 2 |
| 45 | Analog 3 OUT (+) | XLR Male | 2 |
| 46 | Analog 4 OUT (+) | XLR Male | 2 |
| 47 | Analog 5 OUT (+) | XLR Male | 2 |
| 48 | Analog 6 OUT (+) | XLR Male | 2 |
| 49 | Analog 1 IN (+) | XLR Female | 2 |
| 50 | Analog 2 IN (+) | XLR Female | 2 |
| 51 | Analog 3 IN (+) | XLR Female | 2 |
| 52 | Analog 4 IN (+) | XLR Female | 2 |
| 53 | Analog 5 IN (+) | XLR Female | 2 |
| 54 | Analog 6 IN (+) | XLR Female | 2 |
| 55-56 | Not Connected ! | ||
| 57 | Digital 1/2 IN (+) | XLR Female | 2 |
| 58 | Digital 3/4 IN (+) | XLR Female | 2 |
| 59 | Digital 5/6 IN (+) | XLR Female | 2 |
| 60 | Digital 1/2 OUT (+) | XLR Male | 2 |
| 61 | Digital 3/4 OUT (+) | XLR Male | 2 |
| 62 | Digital 5/6 OUT (+) | XLR Male | 2 |
